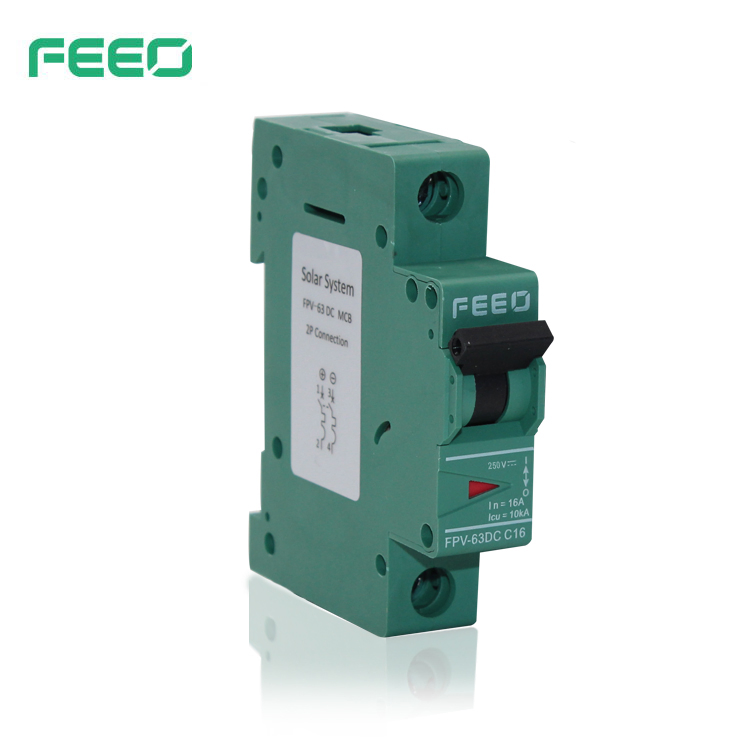

DC Circuit Breaker
Interrupts DC overcurrent and short-circuit faults when it is correctly rated for the array or battery circuit.
View buying guide
Solar equipment field guide · Pakistan 2026
Solar products in Pakistan.
Specified, not guessed.
Compare 15 research-backed guides to solar breakers, isolators, SPDs, transfer switches, PV cables, connectors, meters, mounting and supporting equipment—with the ratings, standards, red flags and quote checks that matter.
15component guides
7equipment groups
2026standards reviewed
Typical protection chain DESIGN VIEW
01
ArrayCable · connectors · fuses
02
DC protectionCombiner · SPD · isolator
03
ConversionInverter · meter · controls
04
AC & backupAC DB · SPD · ATS
Protection is a coordinated system. A high rating on one component cannot compensate for the wrong voltage class, poor terminations or an unverified assembly.
Product library
Know what belongs in your system
Each guide explains the device’s job, the ratings that matter, warning signs, installation checks and the standards worth asking for.
15 guides
DC Isolator Switch
Creates a deliberate, lockable disconnection point so the inverter or DC equipment can be serviced safely.
View buying guide

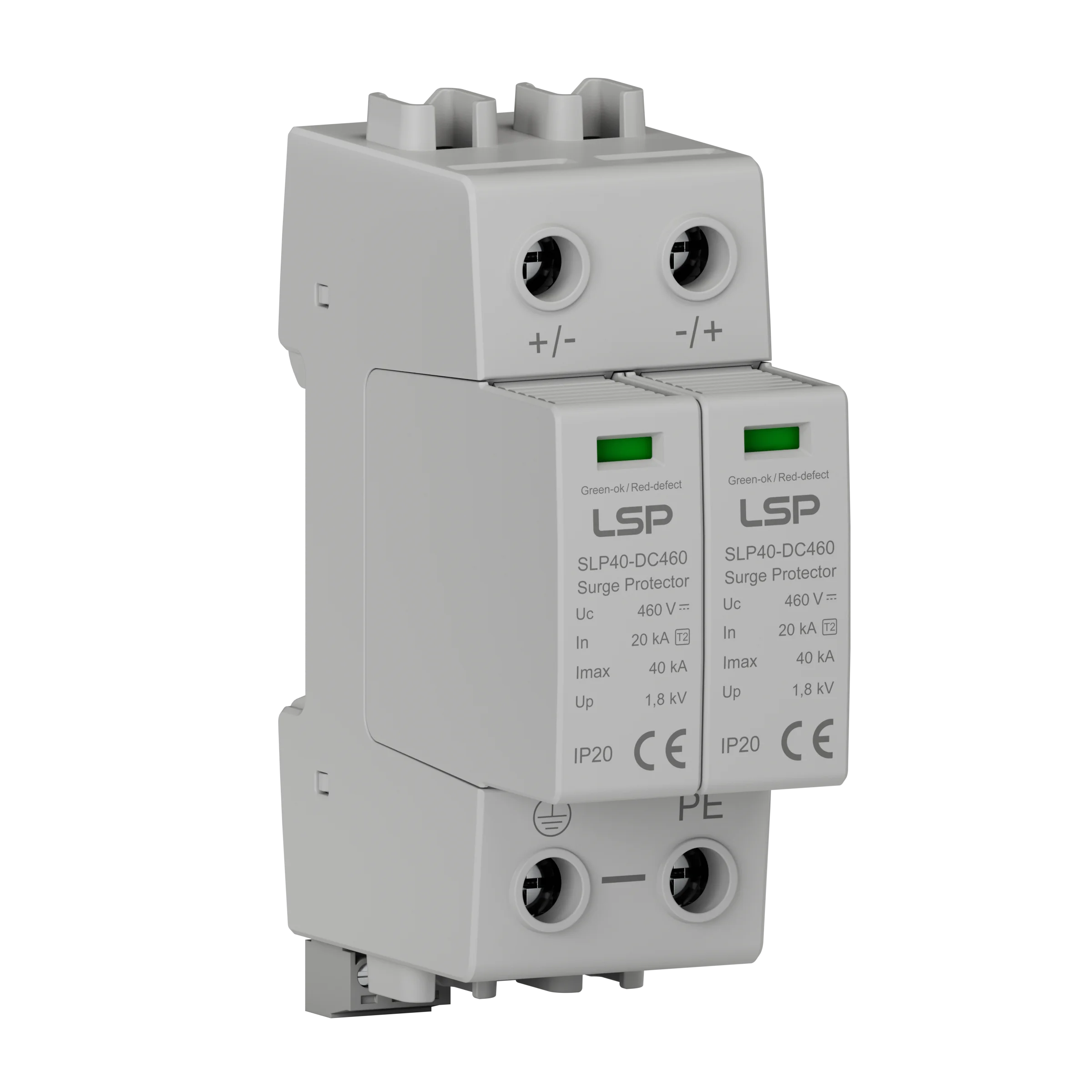

PV DC Surge Protection Device
Diverts transient overvoltage on PV conductors so the inverter and other DC equipment see a lower surge stress.
View buying guide
Automatic Transfer Switch (ATS)
Transfers selected AC loads between two supplies, such as utility and inverter backup, using controlled interlocking.
View buying guide
Solar DC Cable
Carries PV current outdoors while resisting heat, UV, moisture and repeated thermal cycling over the system life.
View buying guide
PV Connectors
Makes touch-protected, weather-resistant plug connections between modules and string cables when correctly matched and crimped.
View buying guide
PV String Fuses & Holders
Clears reverse-current faults in a PV string when parallel strings can feed more current than the module or cable can safely withstand.
View buying guide

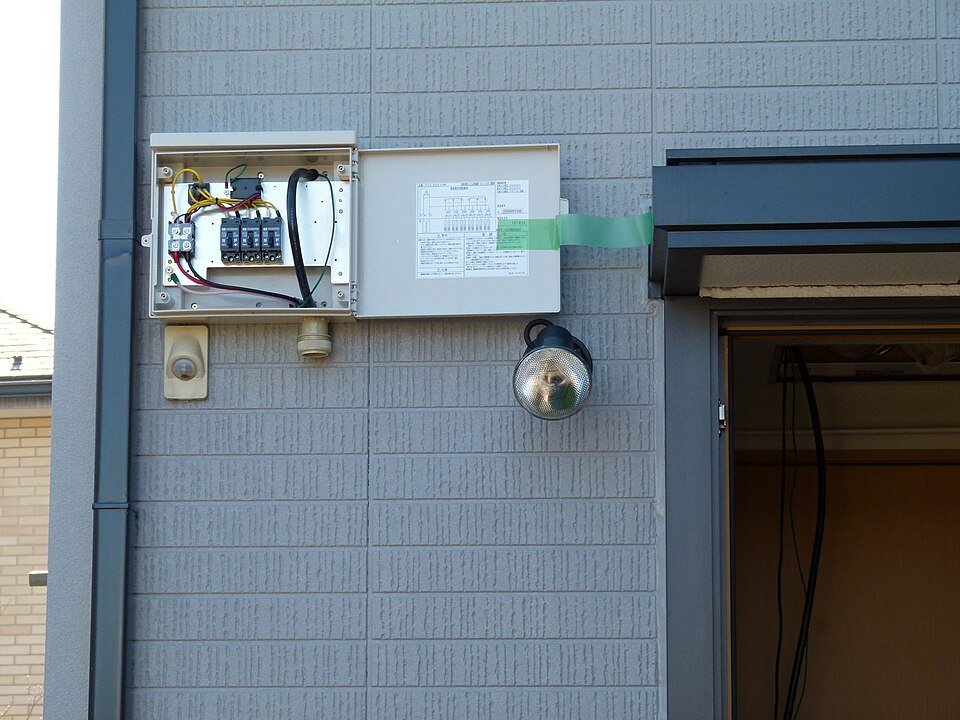

PV Combiner Box
Combines parallel PV strings into one or more outputs while housing coordinated fuses, SPDs, isolation and monitoring as designed.
View buying guide
AC Protection Board
Groups the inverter AC isolator, overcurrent protection and required residual-current protection in a labelled distribution assembly.
View buying guide

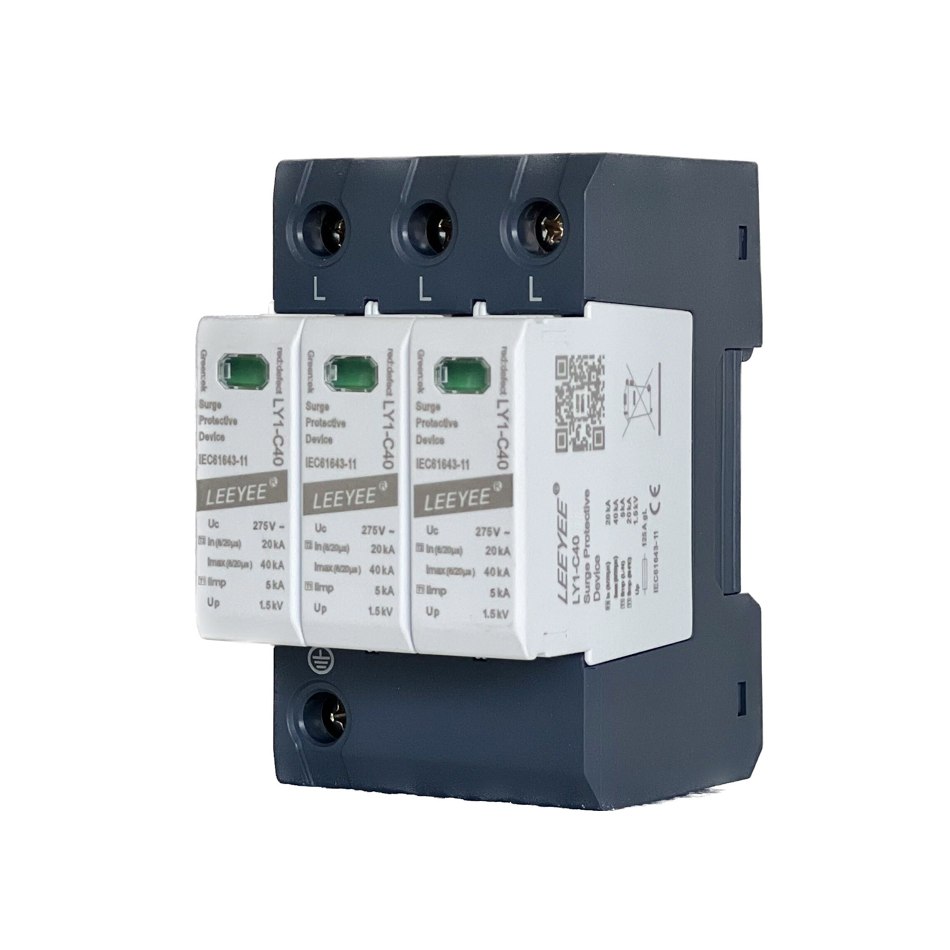

AC Surge Protection Device
Limits transient overvoltage on the inverter's AC connection and the building distribution system.
View buying guide
Earthing & Lightning Protection
Bonds exposed metal, manages fault current paths and integrates the PV array with the building's lightning protection strategy.
View buying guide

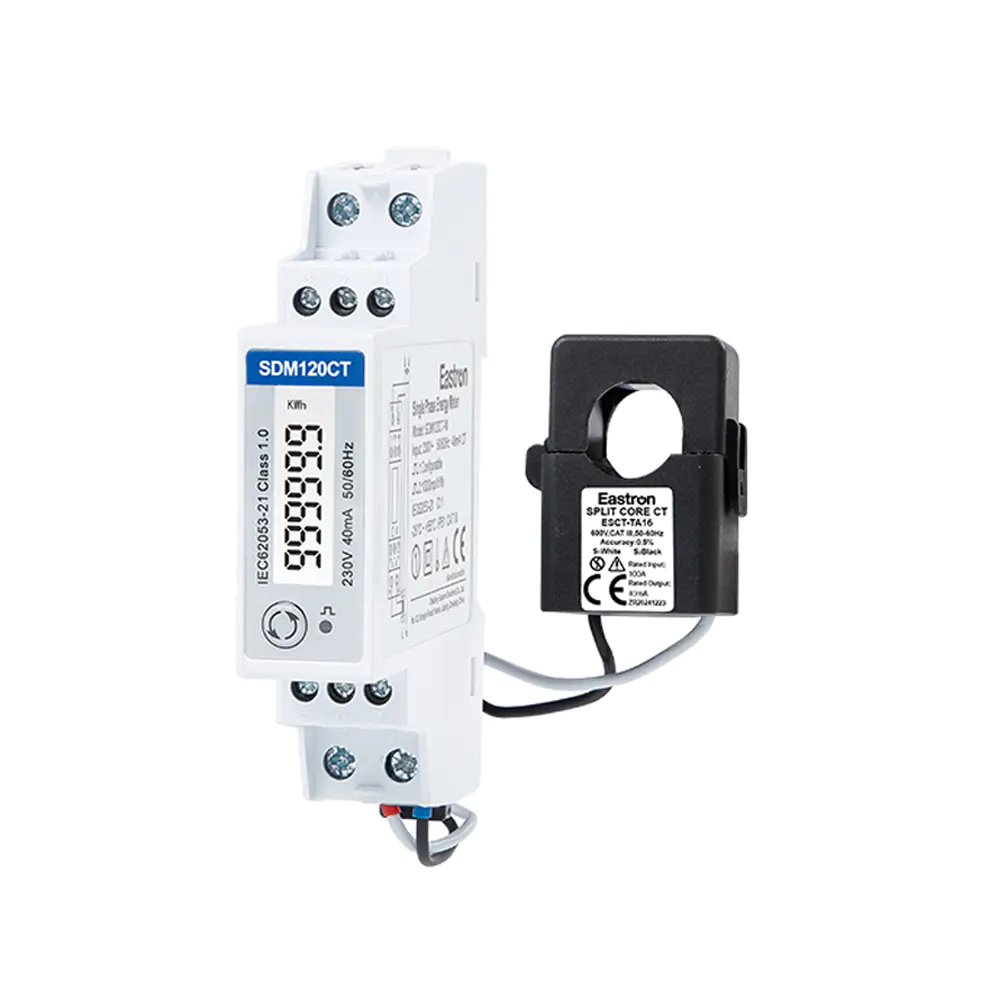

Energy Meter & CT
Measures import, export or feeder flow so the inverter can monitor energy, limit export and report system performance.
View buying guide

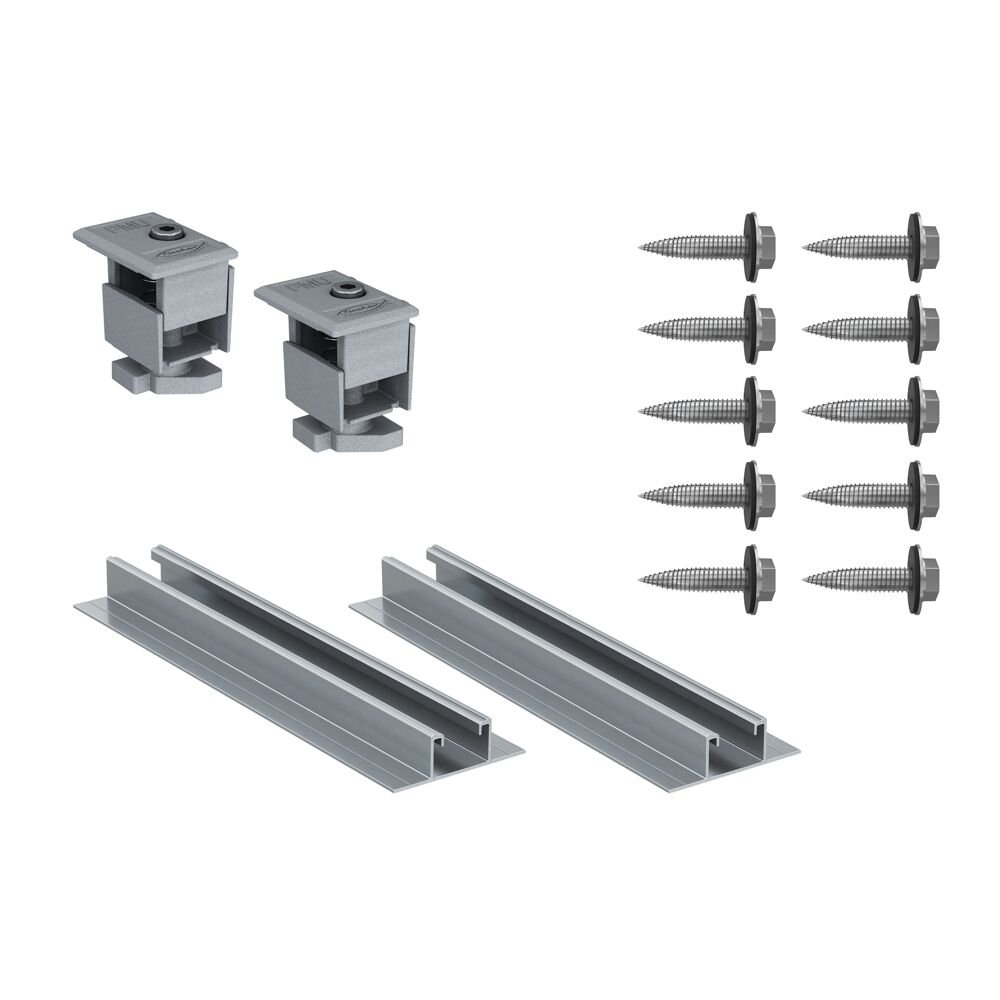

Solar Mounting Structure
Transfers wind, weight and maintenance loads from the modules into the roof or foundation while controlling corrosion and water ingress.
View buying guide
Arc-Fault & Rapid Shutdown Equipment
Detects hazardous series DC arcs and/or reduces array-conductor voltage for emergency response where the design or code requires it.
View buying guide

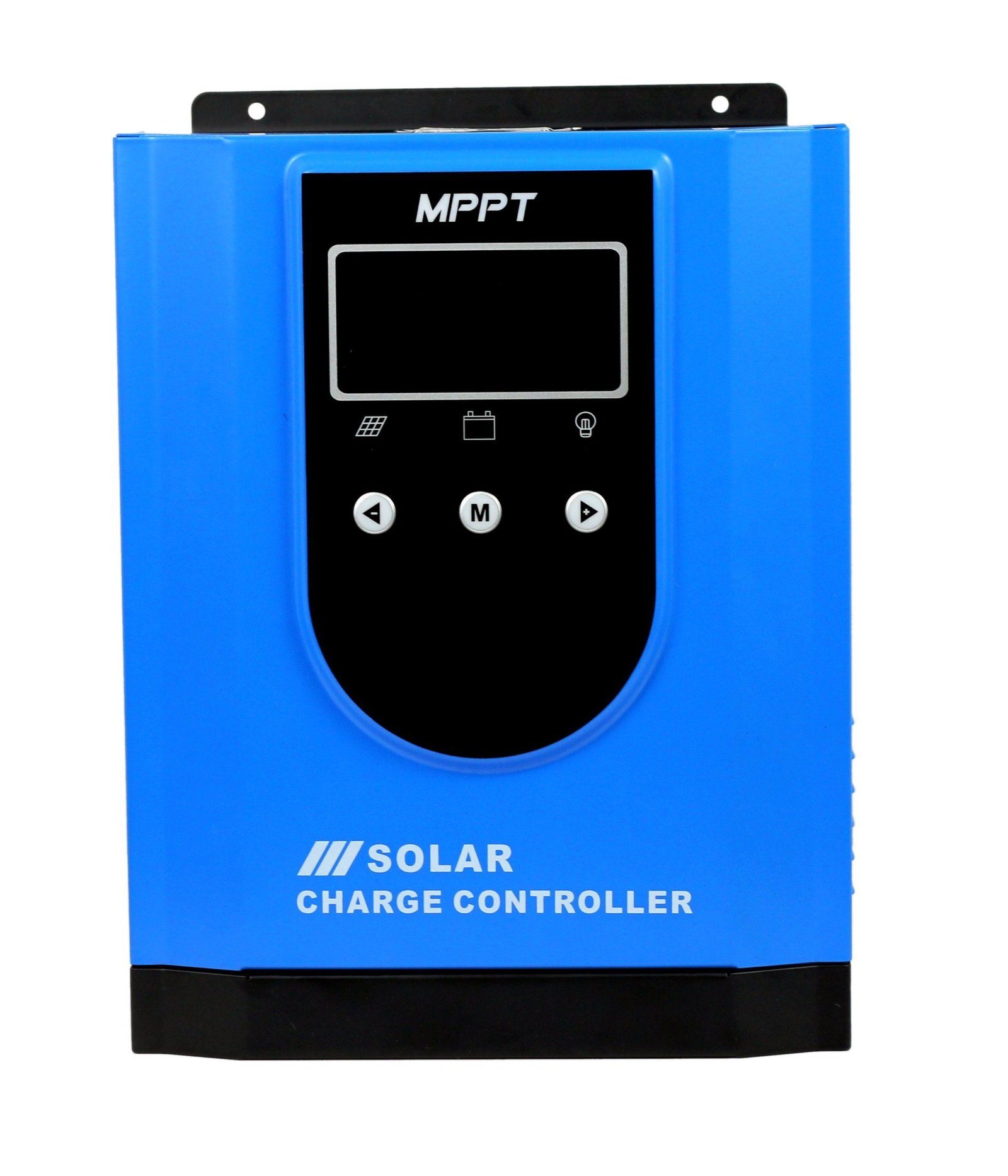

MPPT Solar Charge Controller
Converts PV power into a controlled battery-charging profile in off-grid or separate DC-coupled systems.
View buying guide
01
Start with the electrical design
Maximum string voltage, current, prospective fault level, earthing and cable route determine device ratings.
02
Ask for evidence, not a logo
Request the exact datasheet, standard, model number, wiring diagram and assembly verification behind every quotation.
03
Commission what was installed
Labels, torque records, polarity, protection tests and as-built drawings turn purchased hardware into a verifiable system.
Complete buyer’s guide
Solar equipment is a coordinated system—not a bag of accessories
The panels and inverter usually receive the most attention, but balance-of-system equipment determines how current is carried, faults are interrupted, surges are diverted, sources are separated and the array remains attached to the building. A weak connector, underspecified breaker or poorly assembled distribution box can compromise a premium inverter and module package.
This Pakistan-focused library helps homeowners, businesses, procurement teams and installers compare the purpose and selection criteria of common solar products. It covers DC protection, PV wiring, AC and backup equipment, earthing, monitoring, mounting and off-grid charge control. Each product page includes its typical location, key ratings, buying checklist, warning signs, installation checks, quotation wording and primary technical sources.
Equipment still has to be selected from an electrical and structural design. Array configuration, module data, inverter instructions, battery fault current, cable route, roof condition, local environment and applicable Pakistan or DISCO requirements can all change what is needed. Use these guides to ask better questions and compare quotations on evidence—not to replace project engineering.
Browse solar products by system area
Open a focused guide for every component named in your installer’s equipment list.
DC protection
5 guidesBreakers, isolators, fuses, surge protection and combiner assemblies selected for the array voltage, current and fault duty.
Cables & connections
2 guidesPurpose-made PV cable and compatible connectors that withstand outdoor heat, ultraviolet exposure and repeated thermal cycling.
AC & backup
3 guidesAC distribution, surge protection and source-transfer equipment for grid-connected, hybrid and essential-load circuits.
System safety
2 guidesEarthing, lightning, arc-fault and rapid-shutdown measures chosen from the building, array layout and applicable safety design.
Monitoring
1 guideMeters and current transformers used for energy measurement, export control and inverter monitoring—not utility billing unless approved.
Mounting
1 guideModule support structures engineered for the roof or ground condition, wind loads, corrosion environment and waterproofing details.
Off-grid
1 guideCharge-control equipment for battery systems where PV is coupled on the DC side rather than through a grid or hybrid inverter input.
At-a-glance comparison
Compare 15 solar products by purpose and first rating to verify
This table is a screening tool for quotations. The first rating is not the only specification; open the linked guide for the complete selection and installation checks.
| Solar product | System area | What it does | First rating to verify | Typical need |
|---|---|---|---|---|
| DC Circuit Breaker | DC protection | Interrupts DC overcurrent and short-circuit faults when it is correctly rated for the array or battery circuit. | VoltageAt least the maximum cold-weather DC voltage | Core protection |
| DC Isolator Switch | DC protection | Creates a deliberate, lockable disconnection point so the inverter or DC equipment can be serviced safely. | UtilisationDC-PV duty / maker-declared PV switching | Core safety |
| PV DC Surge Protection Device | DC protection | Diverts transient overvoltage on PV conductors so the inverter and other DC equipment see a lower surge stress. | TypeType 2 or Type 1+2 from lightning design | Core protection |
| Automatic Transfer Switch (ATS) | AC & backup | Transfers selected AC loads between two supplies, such as utility and inverter backup, using controlled interlocking. | SourcesUsually two; define utility, inverter or generator | Hybrid / backup |
| Solar DC Cable | Cables & connections | Carries PV current outdoors while resisting heat, UV, moisture and repeated thermal cycling over the system life. | StandardIEC 62930 or traceable equivalent | Core wiring |
| PV Connectors | Cables & connections | Makes touch-protected, weather-resistant plug connections between modules and string cables when correctly matched and crimped. | SystemSame type and manufacturer on both mating halves | Core wiring |
| PV String Fuses & Holders | DC protection | Clears reverse-current faults in a PV string when parallel strings can feed more current than the module or cable can safely withstand. | ClassgPV fuse-link and PV-rated holder | Conditional protection |
| PV Combiner Box | DC protection | Combines parallel PV strings into one or more outputs while housing coordinated fuses, SPDs, isolation and monitoring as designed. | InputsExact number of strings and MPPT grouping | Multi-string systems |
| AC Protection Board | AC & backup | Groups the inverter AC isolator, overcurrent protection and required residual-current protection in a labelled distribution assembly. | BreakerPoles, current and fault rating from design | Core protection |
| AC Surge Protection Device | AC & backup | Limits transient overvoltage on the inverter's AC connection and the building distribution system. | TypeType 2 or Type 1+2 from lightning design | Core protection |
| Earthing & Lightning Protection | System safety | Bonds exposed metal, manages fault current paths and integrates the PV array with the building's lightning protection strategy. | BondingContinuous, corrosion-compatible connections | Core safety |
| Energy Meter & CT | Monitoring | Measures import, export or feeder flow so the inverter can monitor energy, limit export and report system performance. | PhaseSingle or three phase; all phases mapped | Control & monitoring |
| Solar Mounting Structure | Mounting | Transfers wind, weight and maintenance loads from the modules into the roof or foundation while controlling corrosion and water ingress. | LoadsSite wind, dead, live and maintenance loads | Core mechanical |
| Arc-Fault & Rapid Shutdown Equipment | System safety | Detects hazardous series DC arcs and/or reduces array-conductor voltage for emergency response where the design or code requires it. | FunctionAFCI, shutdown, or explicitly both | Design-dependent safety |
| MPPT Solar Charge Controller | Off-grid | Converts PV power into a controlled battery-charging profile in off-grid or separate DC-coupled systems. | PV voltageCold-weather Voc below absolute maximum | Off-grid / DC-coupled |
“Core” describes a common function, not a universal bill of materials. Final need and rating depend on the system topology, equipment instructions and site design.
Selection framework
How to choose solar products before comparing brands
Brand reputation matters only after the required duty is clear. Work through these six gates for every breaker, switch, cable, connector, enclosure and control device.
- 01
Calculate the design envelope
Record maximum cold-weather PV voltage, operating and fault current, AC fault level, battery voltage, cable lengths, earthing arrangement and environmental temperature before selecting hardware.
- 02
Match the exact electrical duty
DC and AC devices are not interchangeable. Check the voltage class, current, number of poles, breaking or withstand capacity, utilisation category and circuit topology on the exact model datasheet.
- 03
Verify standards and traceability
Ask for a manufacturer name, full model number, datasheet, applicable IEC standard, certification evidence, serial or batch traceability and a local warranty route.
- 04
Review the complete assembly
Enclosures, busbars, terminals, glands, internal wiring and heat dissipation affect safety. Certified parts inside a box do not automatically make a verified combiner or distribution assembly.
- 05
Design for Pakistan’s conditions
Check outdoor ingress protection, ultraviolet resistance, rooftop heat, dust, humidity or coastal corrosion, cable support and access for safe inspection and replacement.
- 06
Specify commissioning and handover
The quotation should include labels, torque records, polarity and insulation checks, protection tests, settings, as-built drawings, datasheets, serial numbers and warranty documents.
Before you approve a quote
Five questions that expose weak equipment lists
Product names alone are not a specification. These questions force the installer’s choices back to the design values and the actual equipment being supplied.
Find a solar installer- 01
What is the maximum design voltage? Show the cold-weather string calculation—not just the inverter’s nominal MPPT range.
- 02
Which exact standard and model? “DC breaker” or “German SPD” is not traceable evidence.
- 03
What is the breaking or withstand rating? Voltage, current and fault-duty ratings must be stated together.
- 04
Are these components verified as an assembly? A weatherproof box of certified parts is not automatically a verified combiner or distribution board.
- 05
What will be handed over? Ask for the single-line diagram, settings, test results, serials, datasheets and warranty route.
Prices and quotations
Compare solar product prices in Pakistan on the same specification
There is no reliable single market price for “a DC breaker”, “solar cable” or “an SPD”. Products with the same headline amperage can have different DC voltage limits, breaking capacities, conductor content, enclosure ratings, test evidence and warranty channels. Exchange rates, metal costs, availability and labour can also move quoted totals over time.
Build a technical schedule first, then request the same manufacturer and model—or a documented equivalent—from each supplier. Separate equipment, enclosure or assembly, installation, testing and tax so a low total cannot hide a downgraded component or missing scope.
What changes the price
- DC or AC voltage class and number of poles
- Continuous current, breaking capacity and surge duty
- Copper content, cable length and connector tooling
- Outdoor IP, UV, temperature and corrosion performance
- Certification, traceability and authorised supply channel
- Assembly engineering, labour, testing and warranty support
What every quote line should state
- Manufacturer, exact model and quantity
- Voltage, current and fault or surge rating
- Applicable product standard and evidence offered
- Enclosure, terminal and environmental details
- Installation, labelling and commissioning scope
- Warranty term, claim route, exclusions and taxes
Common questions
Solar products and protection equipment FAQs
Short answers to the questions that most often change a solar equipment list. The linked product guides explain ratings, red flags and installation checks in depth.
01Which solar products are normally required for an on-grid system in Pakistan?+
A typical system needs purpose-made solar DC cable and PV connectors, correctly rated DC and AC isolation/protection, earthing and bonding, a designed mounting structure, metering or CT equipment where required, plus the modules and inverter. String fuses, a combiner box, an ATS, rapid shutdown and battery charge control are conditional—not universal shopping-list items.
02What is the difference between a DC circuit breaker and a DC isolator?+
A DC circuit breaker detects and interrupts overcurrent or short-circuit faults within its rating. A DC isolator provides a deliberate load-break and isolation point for operation or maintenance. One device can perform both functions only when the manufacturer explicitly rates that exact model for both duties.
03Does every solar installation need a PV combiner box and string fuses?+
No. A PV combiner box is most relevant when parallel strings must be combined or when the design needs grouped fuses, SPDs, isolation or monitoring. String-fuse need depends on parallel-source current, the module’s maximum series-fuse rating, conductor capacity and the inverter or array design.
04How should a PV surge protection device be selected?+
A PV DC SPD must match the PV circuit configuration, have Ucpv above the calculated maximum open-circuit voltage and provide a suitable protection level. Type 1, Type 2 or Type 1+2 selection follows the lightning-risk and external lightning-protection design. Lead length, bonding and backup protection are part of the result.
05Is an ATS always needed with a hybrid solar inverter?+
No. Many hybrid inverters include a transfer function for a defined essential-load output. An external automatic transfer switch is used only where the source arrangement, load current, neutral switching, transfer time and interlocking design require it. It must never create unintended backfeed or bypass anti-islanding protection.
06How can I identify genuine solar cable and connectors?+
Match the cable and connector to traceable manufacturer documentation and the specified standard. Check continuous cable markings, conductor size, voltage and temperature class, and keep both connector halves from the same manufacturer and product family. Correct crimp tooling, dies, pull testing and weatherproof assembly matter as much as the logo.
07Is an MPPT charge controller required for every solar system?+
No. A separate MPPT solar charge controller is used in off-grid or other DC-coupled battery systems. Grid-tied and many hybrid inverters already contain their own PV MPPT stages. Adding another controller without a compatible battery and charging design can create conflicts rather than benefits.
08What details should appear in a solar equipment quotation?+
Every important line should state the manufacturer, exact model, quantity, electrical rating, applicable standard, enclosure or environmental rating, warranty and installation scope. The quote should also identify exclusions and promise the single-line diagram, protection settings, test results, serials, datasheets and as-built handover pack.
09Why do prices for apparently similar solar accessories vary so much?+
Price can change with voltage and fault-duty ratings, conductor material, enclosure and corrosion protection, certification, brand channel, assembly quality, warranty support, exchange rates and installation labour. Compare like-for-like model numbers and evidence; a product name or ampere value alone is not enough for a fair comparison.
Research basis
Built from primary technical sources
Guides were reviewed on August 11, 2026. Standards define a product’s scope; the installer and engineer still determine whether it is required and how it is rated.
PV array designIEC 62548-1:2023 + AMD1:2025↗PV electrical installationsIEC 60364-7-712:2025↗PV switchgear assembliesIEC 61439-8:2026↗Commissioning & handoverIEC 62446-1↗
Function before brand
We explain what each equipment type does, where it normally belongs and which design values govern selection. The library does not rank a pictured brand or claim one model suits every installation.
Primary sources first
Product scopes and safety principles are checked against current IEC publications, Pakistan regulatory material where relevant, and manufacturer documentation for model-specific examples.
Design still controls
Standards and regulations change, and project conditions differ. The qualified designer and installer must confirm the applicable edition, inverter instructions, local DISCO rules and site-specific ratings.
Representative product image sources
Images identify the equipment type only. A pictured brand or model is not a recommendation; always verify the exact ratings and evidence for the item quoted.
DC breakerSource page ↗DC isolatorSource page ↗DC SPDSource page ↗ATSSource page ↗PV cableSource page ↗PV connectorsCC BY-SA 3.0 · E090 ↗PV fusesSource page ↗Combiner boxCC BY-SA 2.0 · cocreatr ↗AC DBSource page ↗AC SPDSource page ↗Earthing & LPSSource page ↗Smart meter / CTSource page ↗Mounting structureSource page ↗AFCI / shutdownSource page ↗MPPT controllerSource page ↗
